材質(zhì) |
| |
塑件： PA66+23%GF,
UL 94V-0 |
| |
端子： |
黃銅，0.8厚
鍍錫 |
| |
螺絲： |
鋼，M4
鍍鎳 |
|
|
|
|
| |
性能 |
| |
額定電壓/電流： |
300V
/ 20A |
| |
使用溫度： |
-4O°C~+105°C |
| |
耐電壓： |
AC2000V
/ 1 Min |
| |
絕緣阻抗： |
500MΩ /
DC500V |
| |
適用線徑： |
22-12AWG |
| |
最大鎖緊扭力： |
1.2N.m
10.6Lb.in |
|
|

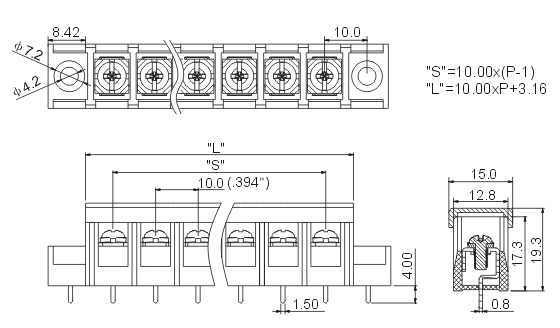

極 數(shù)
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
|
L(mm)
|
23.16
|
33.16
|
43.16
|
53.16
|
63.16
|
73.16
|
83.16
|
93.16
|
103.16
|
|
S(mm)
|
10.00
|
20.00
|
30.00
|
40.00
|
50.00
|
60.00
|
70.00
|
80.00
|
90.00
|
| |
|
極 數(shù)
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
|
L(mm)
|
113.16
|
123.16
|
133.16
|
143.16
|
153.16
|
163.16
|
173.16
|
183.16
|
193.16
|
|
S(mm)
|
100.00
|
110.00
|
120.00
|
130.00
|
140.00
|
150.00
|
160.00
|
170.00
|
180.00
|
| |
|
極 數(shù)
|
20
|
21
|
22
|
23
|
24
|
25
|
26
|
27
|
28
|
|
L(mm)
|
203.16
|
213.16
|
223.16
|
233.16
|
243.16
|
253.16
|
263.16
|
|
|
|
S(mm)
|
190.00
|
200.00
|
210.00
|
220.00
|
230.00
|
240.00
|
250.00
|
|
|
|
| |
|
|
