撥碼開關KBPD |
|
 |
|
技術參數(shù)
| Switching Capacity |
AC50/DC30V 1mA~0.1A |
| Carry current |
500mA |
| Contact Resistance |
200mΩ max. |
| Insulation |
10MΩ min.(At 250VDC) between nonconnected terminals |
| Resistance |
100MΩ min.(At250VDC) between each terminal and noncurrent-carrying part |
| Vibration |
10 to 55Hz, 1.5mm |
| Shock |
490m/s (approx.50g’s) |
| Ambient Temperature |
Operating:-10to+65℃ Storage:-20to+80℃ |
| Humidity |
45 to 85%RH max. |
| Service life |
Mechanically: 30,000 operations(steps)min. Electrically: 20,000 operations (steps)min. |
|
|
|
| 外形尺寸 |
|
|
|
|
| |
|
|
|
|
| |
|
No of units |
A |
B |
D |
|
(N) |
(Nx12.5+20) |
(Nx12.5+5) |
|
1 |
3.25 |
17.5 |
17.9 |
|
2 |
45 |
30 |
30.4 |
|
3 |
57.5 |
42.5 |
42.9 |
|
4 |
70 |
55 |
55.4 |
|
5 |
82.5±0.8 |
67.5±0.8 |
68.3 |
|
6 |
95±0.8 |
80±0.8 |
80.8 |
|
7 |
107.5±0.8 |
92.5±0.8 |
93.3 |
|
8 |
120±0.8 |
105±0.8 |
105.8 |
|
9 |
132.5±0.8 |
117.5±0.8 |
118.3 |
|
10 |
257.5±0.8 |
130±0.8 |
130.8 |
|
|
| |
| 安裝夾板尺寸 (1付) |
|
左 |
右 |
|
KSA-1/01 |
|
|
|
|
|
|
| |
|
| 輸出編碼 |
|
|
| BCD 0-9; 1-2-4-8.10 POSITION |
DECIMAL-1 POLE; 10 POSITION |
SPDT REPEATING; 10 POSITION |
|
|
|
|
|
| |
|
|
|
|

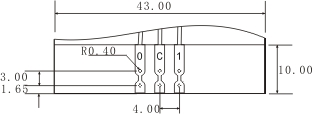

接線板尺寸 |
|
|
|
|
KBPD/A |
KBPD/B |
|
|
|
| |
|
|
KBPDC |
|
|
|
|
| |
|
| 訂購說明 |
|
|
When placing your order ,specify the
desired type and the required quantity
using the example below as reference. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
