37 繼電器調整鉗 |
|
|
|
|
 |
| |

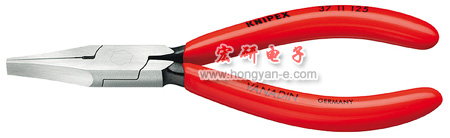

37 11 125 |
 |
|
型1：矩形，凹扁嘴 |
|
|
|
 |
| |

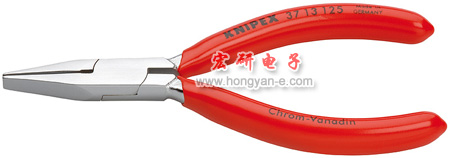

37 13 125 |
|
|
型1：矩形，凹扁嘴 |
|
|
|
 |
| |

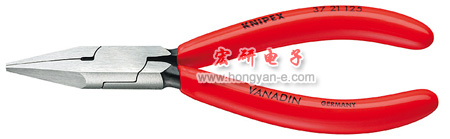

37 21 125 |
|
|
型2：凹扁尖嘴 |
|
|
|
 |
| |

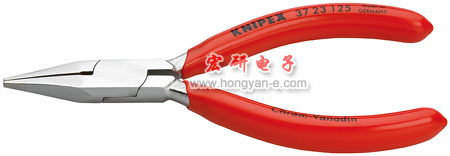

37 23 125 |
|
|
型2：凹扁尖嘴 |
|
|
|
 |
| |

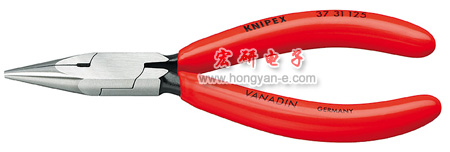

37 31 125 |
|
|
型3：半圓嘴 |
|
|
|
 |
| |

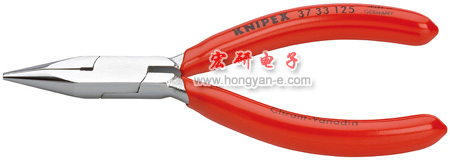

37 33 125 |
|
|
型3：半圓嘴 |
|
|
|
 |
| |

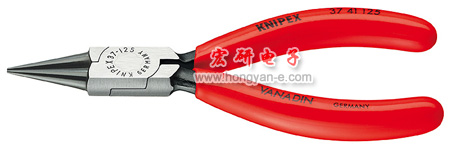

37 41 125 |
|
|
型4：圓形尖嘴，用于彎曲線環 |
|
|
|
 |
| |

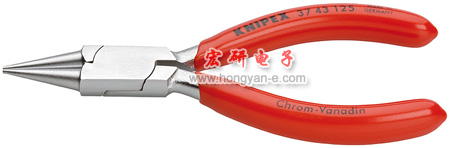

37 43 125 |
|
|
型4：圓形尖嘴，用于彎曲線環 |
|
|
|
 |
|
|
貨號 |
長度 |
型式 |
頭部 |
手柄 |
尺寸 |
重量 |
| |
mm |
|
|
|
B
mm |
A
mm |
D
mm |
E
mm |
F
mm |
g |
|
37 11 125 |
125 |
型1 |
拋光 |
塑料套柄 |
27.0 |
12.5 |
7.0 |
2.0 |
5.5 |
70 |
|
37 13 125 |
125 |
鍍鉻 |
塑料套柄 |
27.0 |
12.5 |
7.0 |
2.0 |
5.5 |
70 |
|
37 21 125 |
125 |
型2 |
拋光 |
塑料套柄 |
27.0 |
12.5 |
7.0 |
2.0 |
2.0 |
75 |
|
37 23 125 |
125 |
鍍鉻 |
塑料套柄 |
27.0 |
12.5 |
7.0 |
2.0 |
2.0 |
75 |
|
37 31 125 |
125 |
型3 |
拋光 |
塑料套柄 |
27.0 |
12.5 |
7.0 |
2.0 |
1.6 |
65 |
|
37 33 125 |
125 |
鍍鉻 |
塑料套柄 |
27.0 |
12.5 |
7.0 |
2.0 |
1.6 |
65 |
|
37 41 125 |
125 |
型4 |
拋光 |
塑料套柄 |
27.0 |
14.5 |
8.0 |
2.0 |
1.0 |
75 |
|
37 43 125 |
125 |
鍍鉻 |
塑料套柄 |
27.0 |
14.5 |
8.0 |
-2.0 |
1.0 |
75 |
|
|
|
精密機械元件的裝配
