閉式雙內爪游標卡尺 |  |
|
|
|
主要特點 |
|
不銹鋼制造
圓弧形內測量面適合于精確地內測量
帶微調裝置
長量爪用于測量通常情況難以達到的位置 |
| |
|
主要特點 |
|
| |
|
測量范圍 |
貨號 |
游標讀數值 |
允許誤差 |

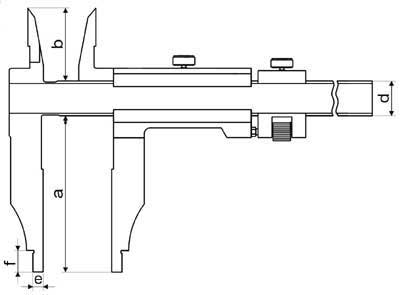

a mm |
b mm |
d mm |
e mm |
f mm |
|
外測量 |
內測量 |
|
0-300mm |
10-300mm |
141-180 |
0.02mm |
±0.04mm |
60 |
38 |
20 |
5 |
12 |
|
1 |
|
141-180-1 |
0.02mm |
±0.04mm |
90 |
24 |
20 |
5 |
12 |
|
|
20-300mm |
141-180-2 |
0.02mm |
±0.04mm |
100 |
45 |
24 |
10 |
18 |
|
|
|
141-180-3 |
0.02mm |
±0.04mm |
125 |
45 |
24 |
10 |
18 |
|
|
10-300mm |
141-181 |
0.05mm |
±0.08mm |
60 |
38 |
20 |
5 |
12 |
|
|
|
141-181-1 |
0.05mm |
±0.08mm |
90 |
42 |
20 |
5 |
12 |
|
|
20-300mm |
141-181-2 |
0.05mm |
±0.08mm |
100 |
45 |
24 |
10 |
18 |
|
|
|
141-181-3 |
0.05mm |
±0.08mm |
125 |
45 |
24 |
10 |
18 |
|
0-400mm |
20-400mm |
141-182 |
0.02mm |
±0.05mm |
100 |
45 |
24 |
10 |
18 |
|
|
|
141-182-1 |
0.02mm |
±0.05mm |
125 |
45 |
24 |
10 |
18 |
|
|
|
141-182-2 |
0.02mm |
±0.05mm |
150 |
60 |
31 |
10 |
24 |
|
|
|
141-183 |
0.05mm |
±0.08mm |
100 |
45 |
24 |
10 |
18 |
|
|
|
141-183-1 |
0.05mm |
±0.08mm |
125 |
45 |
24 |
10 |
18 |
|
|
|
141-183-2 |
0.05mm |
±0.08mm |
150 |
60 |
31 |
10 |
24 |
|
0-500mm |
20-500mm |
141-184 |
0.02mm |
±0.05mm |
100 |
60 |
31 |
10 |
24 |
|
|
|
141-184-1 |
0.02mm |
±0.05mm |
150 |
45 |
24 |
10 |
18 |
|
|
|
141-184-2 |
0.02mm |
±0.05mm |
200 |
60 |
31 |
10 |
24 |
|
|
|
141-185 |
0.05mm |
±0.08mm |
100 |
60 |
31 |
10 |
24 |
|
|
|
141-185-1 |
0.05mm |
±0.08mm |
150 |
45 |
24 |
10 |
18 |
|
|
|
141-185-2 |
0.05mm |
±0.08mm |
200 |
60 |
31 |
10 |
24 |
|
0-600mm |
20-600mm |
141-186 |
0.02mm |
±0.07mm |
100 |
45 |
24 |
10 |
18 |
|
|
|
141-186-1 |
0.02mm |
±0.07mm |
150 |
60 |
31 |
10 |
24 |
|
|
|
141-186-2 |
0.02mm |
±0.07mm |
200 |
45 |
24 |
10 |
18 |
|
|
|
141-187 |
0.05mm |
±0.10mm |
100 |
45 |
24 |
10 |
18 |
|
|
|
141-187-1 |
0.05mm |
±0.10mm |
150 |
60 |
31 |
10 |
24 |
|
|
|
141-187-2 |
0.05mm |
±0.10mm |
200 |
45 |
24 |
10 |
18 |
|
0-800mm |
20-800mm |
141-188 |
0.02mm |
±0.07mm |
150 |
45 |
24 |
10 |
18 |
|
|
|
141-188-1 |
0.02mm |
±0.07mm |
200 |
60 |
31 |
10 |
24 |
|
|
|
141-188-2 |
0.02mm |
±0.07mm |
250 |
60 |
31 |
10 |
24 |
|
|
|
141-189 |
0.05mm |
±0.10mm |
150 |
45 |
24 |
10 |
18 |
|
|
|
141-189-1 |
0.05mm |
±0.10mm |
200 |
60 |
31 |
10 |
24 |
|
|
|
141-189-2 |
0.05mm |
±0.10mm |
250 |
60 |
31 |
10 |
24 |
|
0-1000mm |
20-1000mm |
141-190 |
0.02mm |
±0.07mm |
150 |
60 |
31 |
10 |
24 |
|
|
|
141-190-1 |
0.02mm |
±0.07mm |
200 |
60 |
31 |
10 |
24 |
|
|
|
141-191 |
0.05mm |
±0.10mm |
150 |
60 |
31 |
10 |
24 |
|
|
|
141-191-1 |
0.05mm |
±0.10mm |
200 |
60 |
31 |
10 |
24 |
|
|
|
|
| |
|
