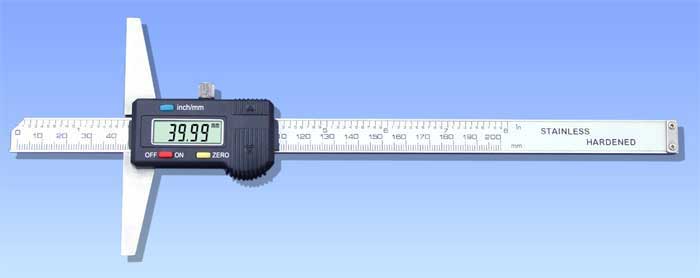

數顯深度尺 |  |
|
|
|
主要特點 |
|
帶電源開關。
任意位置測量單位轉換。
任意位置清零。
帶數據輸出。 |
| |
|
技術參數 |
|
| |
|
測量范圍 |
貨 號 |
分辨力 |
準確度 |

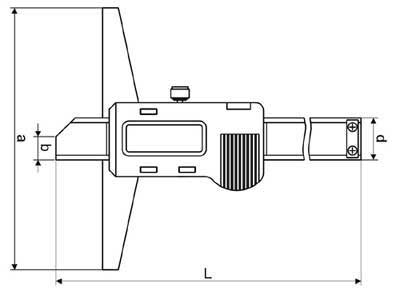

L mm |
a mm |
b mm |
d mm |
|
0-150mm(0-6″) |
121-101 |
0.01mm(.0005″) |
±0.03mm |
230 |
100 |
8.5 |
14.5 |
|
|
121-101-1 |
0.01mm(.0005″) |
±0.03mm |
230 |
150 |
8.5 |
14.5 |
|
0-200mm(0-8″) |
121-102 |
0.01mm(.0005″) |
±0.03mm |
280 |
100 |
8.5 |
14.5 |
|
|
121-102-1 |
0.01mm(.0005″) |
±0.03mm |
280 |
150 |
8.5 |
14.5 |
|
0-250mm(0-10″) |
121-103 |
0.01mm(.0005″) |
±0.04mm |
330 |
100 |
8.5 |
14.5 |
|
|
121-103-1 |
0.01mm(.0005″) |
±0.04mm |
330 |
150 |
8.5 |
14.5 |
|
0-300mm(0-12″) |
121-104 |
0.01mm(.0005″) |
±0.04mm |
380 |
100 |
8.5 |
14.5 |
|
|
121-104-1 |
0.01mm(.0005″) |
±0.04mm |
380 |
150 |
8.5 |
14.5 |
|
0-500mm(0-20″) |
121-105 |
0.01mm(.0005″) |
±0.05mm |
580 |
120 |
7 |
15 |
|
|
121-105-1 |
0.01mm(.0005″) |
±0.05mm |
580 |
150 |
7 |
15 |
|
|
121-105-2 |
0.01mm(.0005″) |
±0.05mm |
580 |
200 |
7 |
15 |
|
0-600mm(0-24″) |
121-106 |
0.01mm(.0005″) |
±0.06mm |
680 |
120 |
7 |
15 |
|
|
121-106-1 |
0.01mm(.0005″) |
±0.06mm |
680 |
150 |
7 |
15 |
|
|
121-106-2 |
0.01mm(.0005″) |
±0.06mm |
680 |
200 |
7 |
15 |
|
0-800mm(0-32″) |
121-107 |
0.01mm(.0005″) |
±0.07mm |
988 |
150 |
7 |
18 |
|
|
121-107-1 |
0.01mm(.0005″) |
±0.07mm |
988 |
200 |
7 |
18 |
|
|
121-107-2 |
0.01mm(.0005″) |
±0.07mm |
988 |
250 |
7 |
18 |
|
0-1000mm(0-40″) |
121-108 |
0.01mm(.0005″) |
±0.07mm |
1188 |
150 |
7 |
18 |
|
|
121-108-1 |
0.01mm(.0005″) |
±0.07mm |
1188 |
200 |
7 |
18 |
|
|
121-108-2 |
0.01mm(.0005″) |
±0.07mm |
1188 |
250 |
7 |
18 |
|
|
121-108-3 |
0.01mm(.0005″) |
±0.07mm |
1188 |
300 |
7 |
18 |
|
|
| |
|
