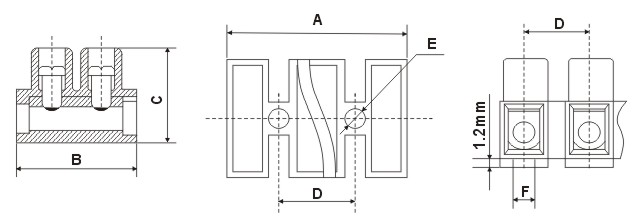

型號：MY8H-1.2 |
|
型號：MY8H-1.2
底部：H型底部加高1.2
螺絲：鋼，鍍鎳
方塊：黃銅，鍍鎳
材質：PA66,UL94V-2
溫度：-40℃~+105℃
接線排數：2-12排 |
|
|
 |
|
|
型 號
|
線 徑
mm²
|
UL
|
IEC
|
螺 絲
|
尺 寸
|
|
安 培
|
電 壓
|
安 培
|
電 壓
|
Unit
|
A
|
B
|
C
|
D
|
E
|
F
|
|
MY8H-1.2
|
1.5
|
17.5A
|
300V
|
24A
|
450V
|
M2.6X5
|
(mm)
|
94.2
|
17.2
|
14.2
|
8.0
|
3.0
|
2.8
|
|
MY10H-1.2
|
2.5
|
28A
|
300V
|
37A
|
750V
|
M3.0X6
|
(mm)
|
116.5
|
20.0
|
17.2
|
10.0
|
3.5
|
3.3
|
|
MY12H-1.2
|
6.0
|
41A
|
600V
|
45A
|
750V
|
M3.5X7
|
(mm)
|
140.7
|
23.8
|
19.0
|
12.0
|
3.9
|
3.9
|
|
MY14H-1.2
|
10.0
|
50A
|
600V
|
57A
|
750V
|
M4X9
|
(mm)
|
158.0
|
25.6
|
22.1
|
13.5
|
4.4
|
4.8
|
|
MY16H-1.2
|
16.0
|
65A
|
600V
|
76A
|
750V
|
M4X9
|
(mm)
|
170.0
|
31.8
|
25.0
|
14.5
|
4.2
|
6.0
|
|
| |
|

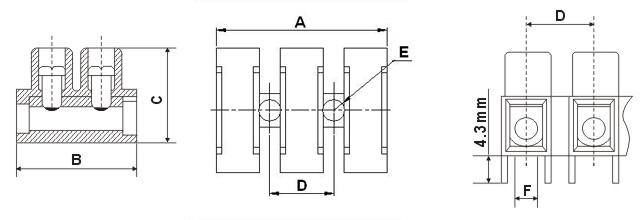

型號：MY8H-4.3 |
|
型號：MY8H-4.3
底部：H型底部加高4.3
螺絲：鋼，鍍鎳
方塊：黃銅，鍍鎳
材質：PA66,UL94V-2
溫度：-40℃~+105℃
接線排數：2-12排 |
|
|
|
|
|
型 號
|
線 徑
mm²
|
UL
|
IEC
|
螺 絲
|
尺 寸
|
|
安 培
|
電 壓
|
安 培
|
電 壓
|
Unit
|
A
|
B
|
C
|
D
|
E
|
F
|
|
MY8H-4.3
|
1.5
|
17.5A
|
300V
|
24A
|
450V
|
M2.6X5
|
(mm)
|
94.2
|
17.2
|
17.3
|
8.0
|
3.0
|
2.8
|
|
MY10H-4.3
|
2.5
|
28A
|
300V
|
37A
|
750V
|
M3.0X6
|
(mm)
|
116.5
|
20.0
|
20.3
|
10.0
|
3.5
|
3.3
|
|
MY12H-4.3
|
6.0
|
41A
|
600V
|
45A
|
750V
|
M3.5X7
|
(mm)
|
140.7
|
23.8
|
22.1
|
12.0
|
3.9
|
3.9
|
|
MY14H-4.3
|
10.0
|
50A
|
600V
|
57A
|
750V
|
M4X9
|
(mm)
|
158.0
|
25.6
|
25.2
|
13.5
|
4.4
|
4.8
|
|
MY16H-4.3
|
16.0
|
65A
|
600V
|
76A
|
750V
|
M4X9
|
(mm)
|
170.0
|
31.8
|
28.1
|
14.5
|
4.2
|
6.0
|
|
| |
|

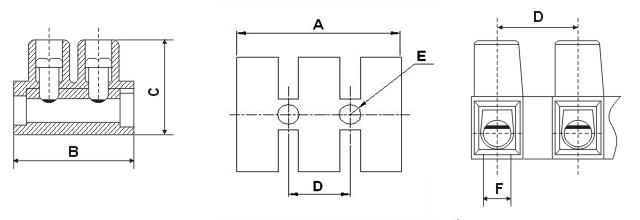

型號：MY8HW-0 |
|
型號：MY8HW-0
底部：平底
彈片：帶彈片
螺絲：鋼，鍍鎳
方塊：黃銅，鍍鎳
材質：PA66,UL94V-2
溫度：-40℃~+105℃
接線排數：2-12排 |
|
|
|
|
|
型 號
|
線 徑
mm²
|
UL
|
IEC
|
螺 絲
|
尺 寸
|
|
安 培
|
電 壓
|
安 培
|
電 壓
|
Unit
|
A
|
B
|
C
|
D
|
E
|
F
|
|
MY8HW-0
|
1.5
|
17.5A
|
300V
|
24A
|
450V
|
M2.6X5
|
(mm)
|
94.2
|
17.2
|
13.0
|
8.0
|
3.0
|
2.8
|
|
MY10HW-0
|
2.5
|
28A
|
300V
|
37A
|
750V
|
M3.0X6
|
(mm)
|
116.5
|
20.0
|
16.0
|
10.0
|
3.5
|
3.3
|
|
MY12HW-0
|
6.0
|
41A
|
600V
|
45A
|
750V
|
M3.5X7
|
(mm)
|
140.7
|
23.8
|
17.8
|
12.0
|
3.9
|
3.9
|
|
MY14HW-0
|
10.0
|
50A
|
600V
|
57A
|
750V
|
M4X9
|
(mm)
|
158.0
|
25.6
|
20.9
|
13.5
|
4.4
|
4.8
|
|
MY16HW-0
|
16.0
|
65A
|
600V
|
76A
|
750V
|
M4X9
|
(mm)
|
170.0
|
31.8
|
23.8
|
14.5
|
4.2
|
6.0
|
|
| |
|

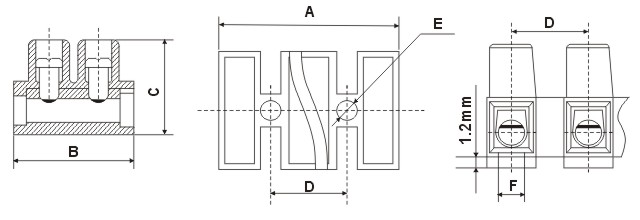

型號：MY8HW-1.2 |
|
型號：MY8HW-1.2
底部：H型底部加高1.2
彈片：帶彈片
螺絲：鋼，鍍鎳
方塊：黃銅，鍍鎳
材質：PA66,UL94V-2
溫度：-40℃~+105℃
接線排數：2-12排 |
|
|
|
|
|
型 號
|
線 徑
mm²
|
UL
|
IEC
|
螺 絲
|
尺 寸
|
|
安 培
|
電 壓
|
安 培
|
電 壓
|
Unit
|
A
|
B
|
C
|
D
|
E
|
F
|
|
MY8HW-1.2
|
1.5
|
17.5A
|
300V
|
24A
|
450V
|
M2.6X5
|
(mm)
|
94.2
|
17.2
|
14.2
|
8.0
|
3.0
|
2.8
|
|
MY10HW-1.2
|
2.5
|
28A
|
300V
|
37A
|
750V
|
M3.0X6
|
(mm)
|
116.5
|
20.0
|
17.2
|
10.0
|
3.5
|
3.3
|
|
MY12HW-1.2
|
6.0
|
41A
|
600V
|
45A
|
750V
|
M3.5X7
|
(mm)
|
140.7
|
23.8
|
19.0
|
12.0
|
3.9
|
3.9
|
|
MY14HW-1.2
|
10.0
|
50A
|
600V
|
57A
|
750V
|
M4X9
|
(mm)
|
158.0
|
25.6
|
22.1
|
13.5
|
4.4
|
4.8
|
|
MY16HW-1.2
|
16.0
|
65A
|
600V
|
76A
|
750V
|
M4X9
|
(mm)
|
170.0
|
31.8
|
25.0
|
14.5
|
4.2
|
6.0
|
|
|
|
