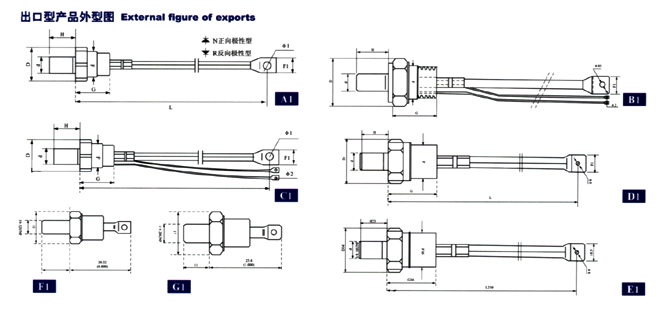

出口型產(chǎn)品外型圖
出口型產(chǎn)品電器參數(shù)
|
型號 |
IT（AV）/Tc |
UDRM |
ITSM 50Hz |
VGT |
IGT |
VTM |
dv/dt |
Rjc |
Figure |
|
A/℃ |
V |
A |
V |
mA |
V |
V/ms |
℃/W |
|
T61-150 |
150/85 |
200-1600 |
3500 |
3 |
150 |
1.75 |
500 |
0.12 |
3 |
|
T61-180 |
180/85 |
200-1600 |
4200 |
3 |
150 |
17.5 |
500 |
0.12 |
3 |
|
T61-230 |
230/85 |
200-1600 |
500 |
3 |
150 |
17.5 |
500 |
0.12 |
3 |
|
T71-280 |
280/85 |
200-1600 |
6600 |
3 |
150 |
1.60 |
500 |
0.12 |
4 |
|
T71-300 |
300/85 |
200-1600 |
7600 |
3 |
150 |
1.60 |
500 |
0.12 |
4 |
|
型號 |
IT（AV）/Tc |
UrrM |
Ifsm |
Vfm |
Rjc |
Figure |
|
A/℃ |
V |
A |
V |
℃/W |
|
D51-150 |
150/120 |
200-1600 |
2700 |
1.5 |
023 |
1 |
|
D61-250 |
250/125 |
200-1600 |
5500 |
1.5 |
023 |
2 |
|
D61-300 |
300/125 |
200-1600 |
6300 |
1.5 |
023 |
2 |
出口型產(chǎn)品外型尺寸
|
型號 |
Figure |
外形尺寸 |
|
D |
d |
H |
L |
F |
F1 |
G |
Φ1 |
Φ2 |
|
D0-4 |
F1 |
11 |
10-32UFN |
11 |
20 |
9 |
|
|
|
|
|
D0-5 |
G1 |
17 |
1/4 28UNF |
11 |
25 |
13 |
|
|
|
|
|
D0-8 |
A1 |
27 |
3/8 24UNF-2A |
16 |
107 |
22 |
14 |
24 |
7 |
|
|
D51-150 |
A1 |
29 |
3/8 24UNF-2A |
21 |
150 |
22 |
14 |
24 |
7 |
|
|
D61-250 |
A1 |
35 |
3/4 16UNF-12A |
27 |
195 |
27.5 |
17 |
37 |
8 |
|
|
D61-300 |
A1 |
35 |
3/4 16UNF-2A |
27 |
195 |
27.5 |
19 |
37 |
8 |
|
|
SRN(R)130 |
D1 |
24 |
3/8 24UNF-2A |
21 |
170 |
19 |
16 |
23 |
8 |
|
|
SRN(R)240 |
D1 |
32 |
3/4 16UNF-2A |
21 |
190 |
287 |
19 |
27 |
8 |
|
|
ZP-300 |
E1 |
34 |
3/4 16UNF-2A |
23 |
210 |
30 |
19 |
36 |
8 |
|
|
T61-150 |
B1 |
35 |
3/4 16UNF-2A |
27 |
195 |
27.5 |
17 |
37 |
8 |
|
|
T61-180 |
B1 |
35 |
3/4 16UNF-2A |
27 |
195 |
27.5 |
17 |
37 |
8 |
3 |
|
T61-230 |
B1 |
35 |
3/4 16UNF-2A |
27 |
195 |
27.5 |
19 |
37 |
8 |
3 |
|
T71-250 |
C1 |
44 |
3/4 16UNF-2A |
27 |
250 |
37.5 |
20 |
46 |
8 |
3 |
|
