■ Very round finish of wires after stripping by sharp and precise edge
■ No damage given to core wires !!
==FEATURES==
●Suitable for both solid and stranded wires
●Oil resistant Elastomer (TPR) handle

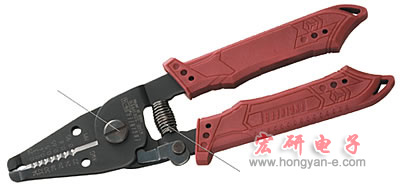

PA-14 for super-thin wire

Long life and durable cutter
owing to high carbon steel material

■ SPECIFICATIONS 　

Model	Weight
PA-14	134 g

■PA-14　APPLICATION SIZE CHART

Stripper's Hole Diameter			0.25	0.3	0.4	0.5	0.65	0.8	0.95
Applicable Wire	External Diameter (mm)		0.2	0.25	0.3	0.38	0.5	0.64	0.8
	Sectional Area (mm2)		0.025	0.035	0.05	0.08	0.13	0.2	0.33
	A W G Conversion	Stranded	34	32	30	28	26	24	22
	A W G Conversion	Solid wire	32	30	28	26	24	22	20

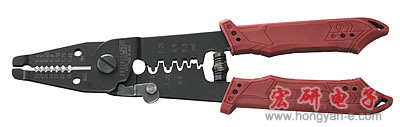

PA-05 for thin wire. with crimping dies equipped

■ CRIMPING FUNCTION

Bare Terminal	Connector Terminal
0.5 to 2.0 mm2	0.3 to 1.25 mm2

■ SPECIFICATIONS 　　

Model	Weight
PA-05	166 g

■APPLICATION SIZE CHART

Stripper's Hole Diameter			0.4	0.5	0.65	0.8	0.95	1.15	1.45
Applicable Wire	External Diameter (mm)		0.3	0.38	0.5	0.64	0.8	1.0	1.3
	Sectional Area (mm2)		0.05	0.08	0.13	0.2	0.33	0.52	0.82
	A W G Conversion	Stranded	30	28	26	24	22	20	18
	A W G Conversion	Solid Wire	28	26	24	22	20	18	16

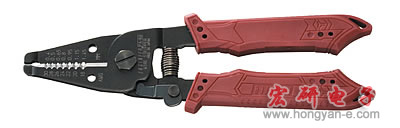

PA-06 for thin wire

with strap hole

■SPECIFICATIONS　　　

Model	Weight
PA-06	134 g

■APPLICATION SIZE CHART

Stripper's Hole Diameter			0.4	0.5	0.65	0.8	0.95	1.15	1.45
Applicable Wire	External Diameter (mm)		0.3	0.38	0.5	0.64	0.8	1.0	1.3
	Sectional Area (mm2)		0.05	0.08	0.13	0.2	0.33	0.52	0.82
	A W G Conversion	Stranded	30	28	26	24	22	20	18
	A W G Conversion	Solid Wire	28	26	24	22	20	18	16

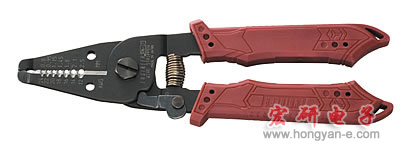

PA-07 for thick wire

with strap hole

■ SPECIFICATIONS

Model	Weight
PA-07	134 g

■ APPLICATION SIZE CHART　　　　　　　　　　　　　　　　　（?。? Reference only

Stripper's Hole Diameter			0.8	0.95	1.15	1.45	1.8	2.1	2.5
Applicable Wire	External Diameter (mm)		0.64	0.8	1.0	1.3	1.5	1.9	2.4
	Sectional Area (mm2)		0.2	0.33	0.52	0.82	1.31	2..08	3.31
	A W G Conversion	Stranded	24	22	20	18	16	14	12
	A W G Conversion	Solid Wire	22	20	18	16	14	(12)	(10)

STRIPPING GAUGE

PA-90

Minimum stripping Length 1mm!!

●Adjustable stripping length let you work more efficiently and reduces error.
