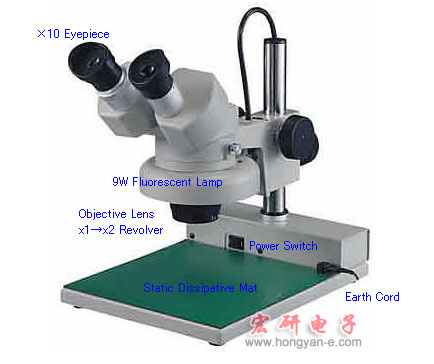

* Stereo
Microscope
ideal for
SMD
inspection
*
Magnification:
x10/x20
switchable
(Option:
x20/x40)
* Equipped
with static
dissipative
mat to
prevent
electronic
components
from static
discharge
Fine and clear
stereoscopic view
with less distrotion
● Wide
field of
view (dia.
23mm)
● Universal
type of
fluorescent
lamp
featuring
low
maintenance
cost
(approx.
5,000-hours
life)
● 220x220mm
full-flat
wide working
space
● 1M ohm
resistor
built in
earth cord
for safety
● With
optional CCD
Camera &
Software
(Model
SL-63), a
microscopic
image can be
seen on
personal
computer,
and image
processing,
digital
scale,
attachment
to e-mail,
etc. are
feasible on
PC.
● Coming
with 3-core
VDE electric
plug with
earth (only
220-240
version)
■
SPECIFICATIONS
Magnification
(Field of view）
x10（φ23mm）,
x20（φ11.5mm）
Objective Lens
x1, x2
Eyepiece
(Field No.)
×10 （23）
Body
45°inclined &
360°Rotay
Binocular Body
(Diopter
Adjustment on
left eyepiece
tube)
Working Distance
82.5 ㎜
Focus Adjustment
Rack and Pinion
Stage Plate
Static
Dissipative Mat
(220 x 220 mm)
Interpupillary
Distance
52㎜～75㎜
Incident Light
9W Fluorescent
Lamp (FCL9EX)
Base
220 x 285 mm
Height
326 mm
Weight
5.1 Kgs.
●Accessories:
Acryl Plate (2
pcs.), Earth
Cord, Eye Shade
(R & L),
Dust Cover and
Tension Control
Pin

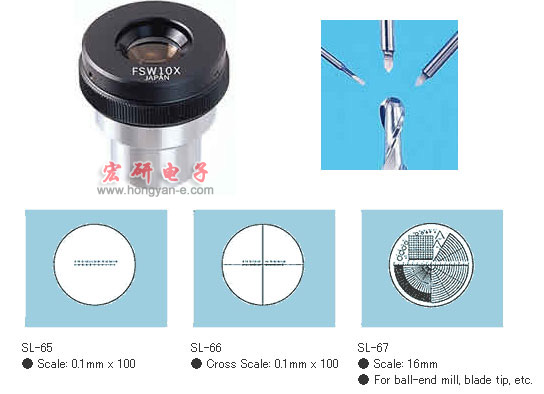

OPTIONAL EYEPIECE
SL-65～67
● Magnification : x10
(Field Number 20)
●φ=30㎜
● Replace either the
right or left original
eyepiece with scaled
lens.
