| 1.線圈數(shù)據(jù) |
|
| 1-1.額定電壓 |
3
to 48 VDC |
| 1-2.線圈電阻 |
Refer
to table 1 |
| 1-3.動作電壓 |
Refer
to table 1 |
| 1-4.釋放電壓 |
Refer
to table 1 |
| 1-5.額定電力消耗 |
540
mW |
| |
|
| 2-1.觸點型式 |
1
Form A , 1 Form C |
| 2-2.觸點材料 |
AgAlloy |
| 2-3.額定下載 |
20A
125VAC 16A 250VAC/ 30VDC,TV-5
|
| 2-4.最大轉換電壓 |
110
VDC / 250 VAC |
| 2-5.最大轉換電流 |
20A |
| 2-6.最大轉換功率 |
4000
VA , 480W |
| 2-7.最少開斷電流 |
5VDC
100mA |
| 2-8.初始接觸電阻 |
30mΩ.at6VDC
1A |

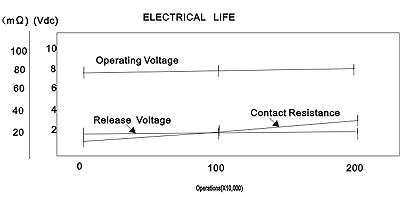

| 2-9.耐久性(平均壽命) |
電氣壽命 |
25,050
operations at TV-5
100,000Ooperations at nominal load
10,000,000operations |
| 機械壽命 |
| 3-1.絕緣電阻 |
Min.1000MΩat
500 VDC |
| 3-2.介質耐壓 |
1,000VAC
, 1min between open contacts
5,000VAC , 1min between contacts and coil |
| 3-3.急放電壓 |
10,000VAC.(1.2/50µs)between
contacts and coil |
| 3-4.動作時間 |
Max.
20ms(including bounce) |
| 3-5.釋放時間 |
Max.
10ms(including bounce) |
| 3-6.使用濕度范圍 |
-30 to+85℃ |
| 3-7.抗沖擊性 |
10G |
| 3-8.抗振性 |
10
to 55 Hz ,1.5mm Double Amplitude |
| 3-9.重量 |
15gr. |
| 3-10.安全認證 |
UL |
| |
TUV
No.R50013259 |
| |
VDE |
 |
NOMINAL
VOLTAGE
DC12V, DC18V,DC24V |
| RELAY
SERIES |
|
|
訂購代碼
|
線圈電壓
VDC |
線圈電阻
Ω +/- 10% |
動作電壓
VDC |
釋放電壓
VDC |
功率
mW |
| HRMF-DC12V |
12 |
270 |
9.0 |
0.6 |
7 |
| HRMF-DC18V |
18 |
600 |
13.5 |
0.9 |
| HRMF-DC24V |
24 |
1100 |
18.0 |
1.2 |
Note: This data is based on the max.allowable
temperature for E 型號 insulation coil(115°C) |
