| 1.線圈數據 |
|
| 1-1.額定電壓 |
3
to 24 VDC |
| 1-2.線圈電阻 |
Refer
to table 1 |
| 1-3.動作電壓 |
Refer
to table 1 |
| 1-4.釋放電壓 |
Refer
to table 1 |
| 1-5.額定電力消耗 |
200mW
to 360 mW |
| |
|
| 2-1.觸點型式 |
2
Form C |
| 2-2.觸點材料 |
AuAg |
| 2-3.額定下載 |
1A
24 VDC / 120VAC |
| 2-4.最大轉換電壓 |
220VDC
/ 250 VAC |
| 2-5.最大轉換電流 |
2A |
| 2-6.最大轉換功率 |
30
W , 120VA |
| 2-7.初始接觸電阻 |
≤50
mΩ.at6 VDC 1A |

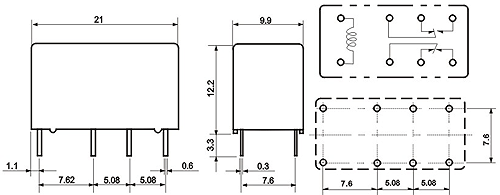

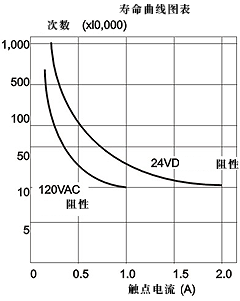

| 2-8.耐久性(平均壽命) |
電氣壽命 |
100,000
operations at nominal load |
| |
20,000,000
operations at 0.5A 120VAC |
|
|
500,000
operations at 1A 24VDC |
| 機械壽命 |
1,000,000
operations at 0.15A 48VDC |
| |
10,000,000
operations |
| 3-1.絕緣電阻 |
Min.100MΩ
at 500 VDC |
| 3-2.介質耐壓 |
750VAC
, 1min between open contacts
1,000VAC , 1min between contacts and coil |
| 3-3.急放濃度 |
1,500
VAC 10x160µs between contacts and coil |
| 3-4.動作時間 |
Max.
6ms |
| 3-5.釋放時間 |
Max.
4ms |
| 3-6.使用濕度范圍 |
-30
to +70 ℃ |
| 3-7.抗沖擊性 |
耐久性 |
1,000m/s2 |
| 強度 |
100m/s2 |
| 3-8.抗振性 |
耐久性 |
10
to 55 Hz ,1.5mm Double Amplitude |
| 強度 |
10
to 55 Hz ,1.5mm Double Amplitude |
| 3-9.高溫性能 |
80±2℃96hs |
| 3-10.低溫性能 |
-40±2℃96hs |
| 3-11.濕度 |
85%RH |
| 3-12.重量 |
5gr. |
| 3-13.安全認證 |
UL
NO.E164730 |
|
CSA
NO.LR109368 |
|
TUV
NO.R2033742 |
 |
E-2，500VAC
BETWEEN COIL& CONTACTS
NIL-1,500VAC BETWEEN COIL&CONTACTS |
CONTACT
ARRANGEMENT
A-2FORM A B-2FORM B
C-2FORM C |
COIL
VOLTAGE
DC3V, DC5V, DC6V, DC9V, DC12V, DC24V,
DC48V |
ENCLOSURE
NIL-FLUX FREE
S-WASHABLE |
H-HIGH
SENSITIVITY
B-450mW
NIL-STANDARD |
| RELAY
SERIES |
|
|
訂購代碼
|
線圈電壓
VDC |
線圈電阻
Ω +/- 10% |
動作電壓
VDC |
釋放電壓
VDC |
功耗
mW |
| HRS2-(S)-DC3V |
3 |
25 |
2.1 |
0.30 |
360 |
| HRS2-(S)-DC5V |
5 |
70 |
3.5 |
0.50 |
| HRS2-(S)-DC6V |
6 |
100 |
4.2 |
0.60 |
| HRS2-(S)-DC9V |
9 |
220 |
6.3 |
0.90 |
| HRS2-(S)-DC12V |
12 |
400 |
8.4 |
1.20 |
| HRS2-(S)-DC24V |
24 |
1600 |
16.8 |
2.40 |
| HRS2-(S)-DC48V |
48 |
5760 |
33.6 |
4.80 |
400 |
| HRS2-(S)-DC3V |
3 |
45 |
2.1 |
0.30 |
200 |
| HRS2H-(S)-DC5V |
5 |
120 |
3.5 |
0.50 |
| HRS2H-(S)-DC6V |
6 |
180 |
4.2 |
0.60 |
| HRS2H-(S)-DC9V |
9 |
400 |
6.3 |
0.90 |
| HRS2H-(S)-DC12V |
12 |
700 |
8.4 |
1.20 |
| HRS2H-(S)-DC24V |
24 |
2800 |
16.8 |
2.40 |
