| 1.線圈數據 |
|
| 1-1.額定電壓 |
3
to 24 VDC |
| 1-2.線圈電阻 |
Refer
to table 1 |
| 1-3.動作電壓 |
Refer
to table 1 |
| 1-4.釋放電壓 |
Refer
to table 1 |
| 1-5.額定電力消耗 |
200
to 450 mW |
| |
|
| 2-1.觸點型式 |
1
Form C,1Form A |
| 2-2.觸點材料 |
Ag
Alloy |
| 2-3.額定下載 |
10A
125VAC,5A 250VAC/30VDC |
| 2-4.最大轉換電壓 |
30VDC
/ 250 VAC |
| 2-5.最大轉換電流 |
10A |
| 2-6.最大轉換功率 |
1,250VA,150W |
| 2-7.最小電壓/電流 |
5
VDC 100mA |
| 2-8.初始接觸電阻 |
50mΩ.at6VDC
1A |
| 2-9.耐久性(平均壽命) |
電氣壽命 |
100,000
operations at 5A/3A 250VAC |
| 機械壽命 |
10,000,000
operations |
| 3-1.絕緣電阻 |
Min.1,000MΩ
.at 500 VDC |
| 3-2.介質耐壓 |
1,000VAC
for 1min between open contacts
4,000VAC for 1min between contacts and coil |

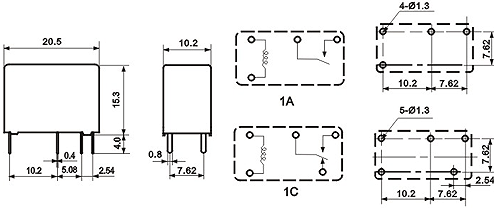

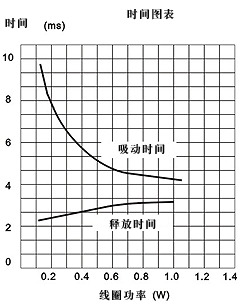

| 3-3.動作時間 |
Max.8ms |
| 3-4.釋放時間 |
Max.5ms |
| 3-5.使用濕度范圍 |
-40
to +70 ℃ |
| 3-6.抗沖擊性 |
10G |
| 3-7.抗振性 |
10
- 55 Hz ,1.5mm Double Amplitude |
| 3-8.重量 |
7gr. |
| 3-9.安全認證 |
UL
NO.E164730 |
|
TUV
NO.2133959 |
|
CCEE
NO.CH0067529-2001 |
 |
NOMINAL
VOLTAGE :
FFFFFDC3V ,
DC5V , DC6V , DC9V , DC12V , DC18V,DC24V ,
DC48V |
ENCLOSURE
FFFFFS ----
WASHABLE |
COIL
SSNIL ----
STANDARD TYPE (450mW)
SSH -------
HIGH SENSITIVITY(200mW) |
| TYPE |
|
|
訂購代碼
|
線圈電壓
VDC |
線圈電阻
Ω
+/- 10% |
動作電壓
VDC |
釋放電壓
VDC |
功耗
mW |
| HRS3T-(S)-DC3V |
3 |
20 |
2.25 |
0.15 |
450 |
| HRS3T-(S)-DC5V |
5 |
55 |
3.75 |
0.25 |
| HRS3T-(S)-DC6V |
6 |
80 |
4.5 |
0.30 |
| HRS3T-(S)-DC9V |
9 |
180 |
6.75 |
0.45 |
| HRS3T-(S)-DC12V |
12 |
320 |
9.0 |
0.60 |
| HRS3T-(S)-DC18V |
18 |
720 |
13.5 |
0.90 |
|
HRS3T-(S)-DC24V
|
24
|
1280 |
18 |
1.2 |
200 |
| HRS3T-(S)-DC48V |
48 |
5120 |
36 |
2.4 |
| HRS3TH-(S)-DC3V |
3 |
45 |
2.25 |
0.15 |
| HRS3TH-(S)-DC5V |
5 |
125 |
3.75 |
0.25 |
| HRS3TH-(S)-DC6V |
6 |
180 |
4.5 |
0.30 |
| HRS3TH-(S)-DC9V |
9 |
400 |
6.75 |
0.45 |
| HRS3TH-(S)-DC12V |
12 |
720 |
9.0 |
0.60 |
| HRS3TH-(S)-DC18V |
18 |
1600 |
13.5 |
0.90 |
| HRS3TH-(S)-DC24V |
24 |
2800 |
18 |
1.2 |
